Designed and built in Yorkshire, UK, the Crossfire range of preamps bridges the gap between traditional and modern engineering.
By combining both premium analogue input and output stages and cutting-edge DSP capabilities with purposeful and experience-lead design, the whole range delivers enhanced flexibility and control over that previously available.
As well as studio quality microphone and phono preamplifiers and enhanced control over your sound system with features like the sub graphic equalizer the Crossfire range offers fully customisable, mathematically and electronically accurate crossovers, EQs, delays, polarity controls and limiters, due to highly capable, industry standard DSP architecture.
Alongside precision electronic engineering, premium feel, reliability and user experience are prioritised to deliver the next step in reggae preamp design.

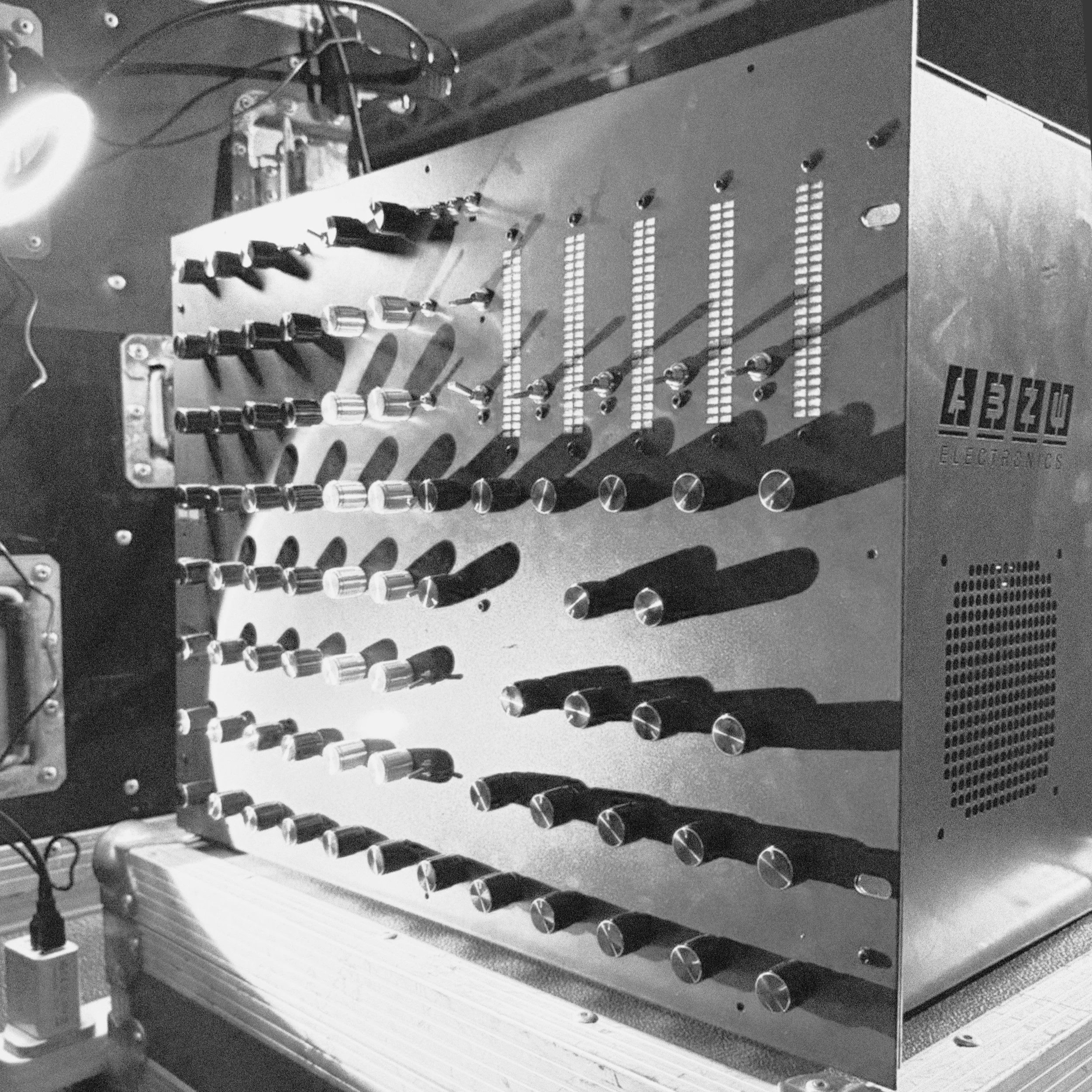

Crossfire
dsp
preamps
Front Panel
Inputs
All Neutrik Connectors, Fully Balanced
2 x Stereo Line in
2 x Stereo Phono in
SPDIF in
2 x Stereo FX Returns
2 x Aux in
2 x Mic/ Line in
Outputs
6 Way Stereo bandpass outs (can be summed to mono via Control Screen on rear panel)
Stereo full range output
2 x Stereo FX Send outputs
5 kill switches
6 way internal adjustable xover (Sub, kick, lo mids, coax lo, coax hi, tops)
Linkable to 5, 4, 3, 2 way
Signal/ clip input lights
Green: Healthy input level
Red: Clipping input
Music Channel
2 sends
These can be switched to send either full range, just the mid or high bands, or a combination of mid and high (essentially high-passing the send)
2 Aux Channels
Gain
3 Band EQ
HPF 3 way switch (off, 150hz, 300hz)
2 Sends
2 Mic Channels
High quality mic preamps
Gain
3 Band EQ
HPF 3 way switch (off, 150hz, 300hz)
One knob limiter on each mic channel
2 Sends
2 FX Returns
Gain
3 Band EQ
HPF 3 way switch (off, 150hz, 300hz)
2 Sends
Stereo width knob
Goes from full mono to full stereo
12 band graphic EQ
4 band bass graphic
This EQ is only applied on the Sub output, giving more control over your scoops or bass boxes
HPF knob - This allows you to drop the subs in and then manually adjust the HPF frequency to drop the bass extra deep when needed or to free up valuable power eaten by, sometimes unnecessary, low sub frequencies, depending on material being played.
Filters
Resonant LPF with Frequency and Resonance control
Resonant HPF with Frequency and Resonance control
Growl
Amount knob
This dictates the amount of growl effect imparted on the sub frequencies
Dry/ Wet knob
This allows the operator to run full growl or to tame it by running a drier signal to the output, allowing for extra control and different ways of playing. For instance, one could run the amount of growl on full but only feed a little signal to the output. Alternatively, one could decide to run full wet but only allow a small amount of growl
Hard/ Soft select
Control Screen
Audio
Per bandpass:
Limiters
Threshold
RMS/ Peak setting
3 Band Parametric EQ
Polarity per bandpass
Delay (for time alignment of boxes)
Bandpass crossover frequency adjustment
Output gain
Music channel
Music input gain control
Aux channels
Aux input gain control
Mic channel Limiter
RMS/ Peak setting
Full range output Gain
Mono bandpass section (allowing user to make any bandpass mono, for instance subs and kicks)
LED Adjustment
VU LED Colour
VU Operation
Peak Bar
Peak Dot
RMS Bar + Peak Dot
Front Panel
Inputs
All Neutrik Connectors, Fully Balanced
2 x Stereo Line in
2 x Stereo Phono in
2 x Coax SPDIF in
2 x Stereo FX Returns
Aux in
Mic in
Outputs
6 Way Stereo bandpass outs (can be summed to mono via Control Screen on rear panel)
Stereo full range output
2 x Stereo FX Send outputs
5 kill switches
6 way internal adjustable xover (Sub, kick, lo mids, coax lo, coax hi, tops)
Linkable to 5, 4, 3, 2 way
Signal/ clip input lights
Green: Healthy input level
Red: Clipping input
Music Channel
2 sends
These can be switched to send either full range, just the mid or high bands, or a combination of mid and high (essentially high-passing the send)
1 Aux Channel
Gain
3 Band EQ
HPF 3 way switch (off, 150hz, 300hz)
2 Sends
1 Mic Channel
High quality mic preamps
Gain
3 Band EQ
HPF 3 way switch (off, 150hz, 300hz)
One knob limiter on each mic channel
2 Sends
2 FX Returns
Gain
2 Band EQ
HPF 3 way switch (off, 150hz, 300hz)
Stereo width knob
Goes from full mono to full stereo
12 band graphic EQ
Filters
Resonant LPF with Frequency and Resonance control
Resonant HPF with Frequency and Resonance control
Growl
Amount knob
This dictates the amount of growl effect imparted on the sub frequencies
Dry/ Wet knob
This allows the operator to run full growl or to tame it by running a drier signal to the output, allowing for extra control and different ways of playing. For instance, one could run the amount of growl on full but only feed a little signal to the output. Conversely, one could decide to run full wet but only allow a small amount of growl
Hard/ Soft select
Control Screen
Audio
Per bandpass:
Limiters
Threshold
RMS/ Peak setting
3 Band Parametric EQ
Polarity per bandpass
Delay (for time alignment of boxes)
Bandpass crossover frequency adjustment
Output gain
Music channel
Music input gain control
Aux channels
Aux input gain control
Mic channel Limiter
RMS/ Peak setting
Full range output Gain
Mono bandpass section (allowing user to make any bandpass mono, for instance subs and kicks)
LED Adjustment
VU LED Colour
VU Operation
Peak Bar
Peak Dot
RMS Bar + Peak Dot
Front Panel
Inputs
All Neutrik Connectors, Fully Balanced
2 x Stereo Line in
2 x Stereo Phono in
2 x Coax SPDIF in
2 x Stereo FX Returns
Aux in
Mic in
Outputs
6 Way Stereo bandpass outs (can be summed to mono via Control Screen on rear panel)
Stereo full range output
2 x Stereo FX Send outputs
4 kill switches
6 way internal adjustable xover (Sub, kick, lo mids, coax lo, coax hi, tops)
Linkable to 5, 4, 3, 2 way
Signal/ clip lights
Green: Healthy input level
Red: Clipping input
Music Channel
2 sends
1 Aux/ Mic Channel
This channel can be switched to either be an Aux or Mic channel or can be used as both simultaneously. Whichever input is not switched into the channel strip will just be sent straight to the output section and Gain and FX Send will be controlled by a knob on the rear of the unit.
Gain
3 Band EQ
HPF 3 way switch (off, 150hz, 300hz)
2 Sends
2 FX Returns
Gain
2 Band EQ
HPF 3 way switch (off, 150hz, 300hz)
8 band graphic EQ
Filters
Resonant LPF with Frequency and Resonance control
Resonant HPF with Frequency and Resonance control
Control Screen
Audio
Per bandpass:
Limiters
Threshold
RMS/ Peak setting
3 Band Parametric EQ
Polarity per bandpass
Delay (for time alignment of boxes)
Bandpass crossover frequency adjustment
Output gain
Music channel
Music input gain control
Aux channels
Aux input gain control
Mic channel Limiter
RMS/ Peak setting
Full range output Gain
Mono bandpass section (allowing user to make any bandpass mono, for instance subs and kicks)
LED Adjustment
VU LED Colour
VU Operation
Peak Bar
Peak Dot
RMS Bar + Peak Dot
